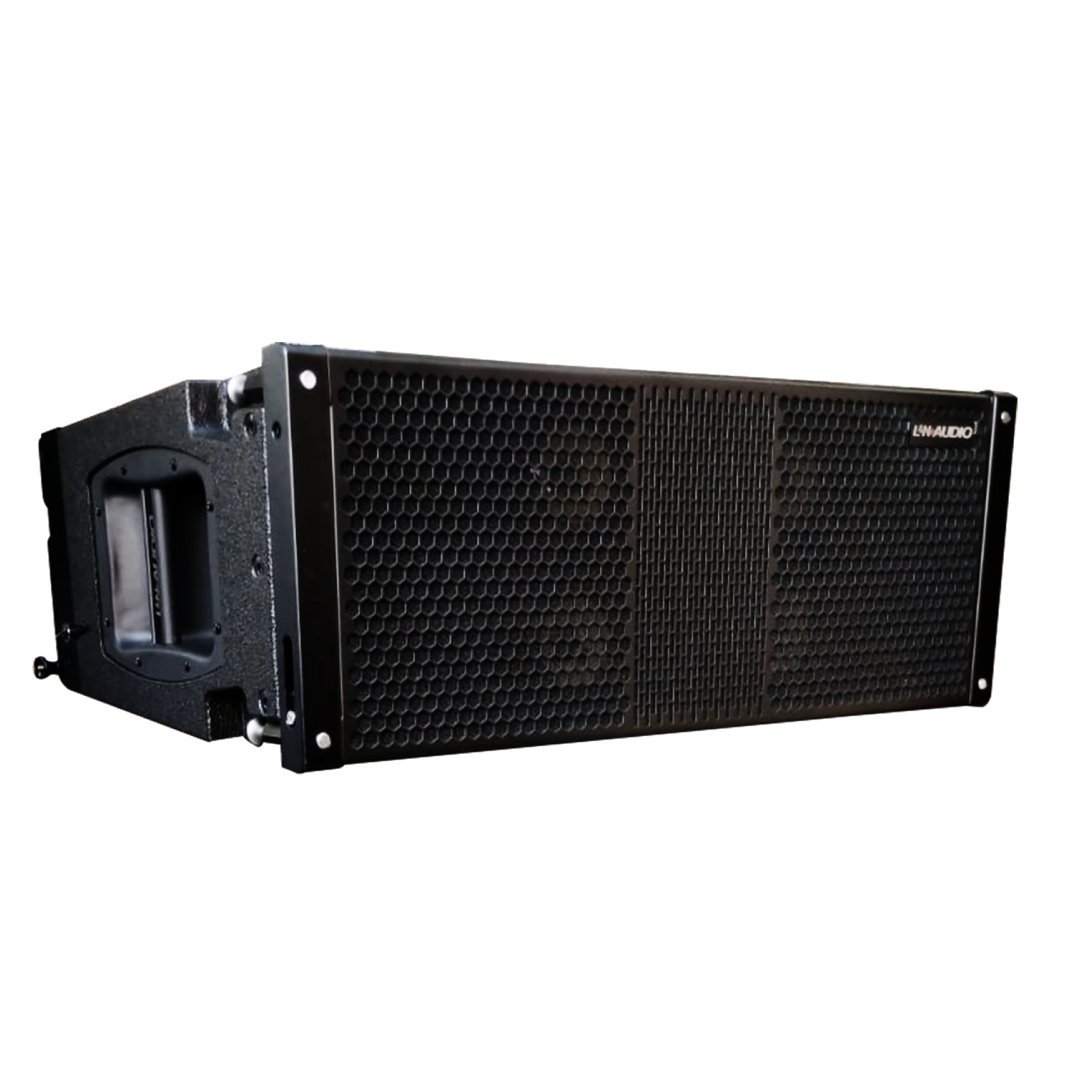

ARES-8A LINE ARRAY ACTIVO 3 VIAS 2X8″ LF(NEODIMIO) + 4X4″ MF (CELESTION – NEODIMIO) + 2X1.4 HF (CELESTION – NEODIMIO) C/GERMAN DSP POWER PEAK: LF:800W/MF:400W HF: 240W SPL: 135 dB (WATERPROOF) «L&N AUDIO PREMIUM»

ARES-8A LINE ARRAY ACTIVO 3 VIAS 2X8″ LF(NEODIMIO) + 4X4″ MF (CELESTION – NEODIMIO) + 2X1.4 HF (CELESTION – NEODIMIO) C/GERMAN DSP POWER PEAK: LF:800W/MF:400W HF: 240W SPL: 135 dB (WATERPROOF) «L&N AUDIO PREMIUM»

ESPECIFICACIONES:

Type： Active 3-way double 8 inch line array with DSP
Sensitivity： 105 dB
SPL： 135 dB PEAK
Frequency range： [+/-3 dB] 55 Hz – 20KHz
Dispersion angle, averaged: [H x V] 90° x 8°, single unit
Power: LF 2 x 8” neo 800W PEAK
MF 4 x 4” neo 400W PEAK
HF 2 x 1.4 neo 240W PEAK
Input sensitivity: Nominal 0 dBu
Signal input：1 x XLR (Audio Input)
Signal output： 1 x XLR (Audio Link Out)
DSP interface： Rj45 input (EtherCon) for control using Pronet software

Amplier Technical Specications

Distoration： <0.05%
Amplifier type： Class-D
Output power： HF Amp 500W, MF Amp600 W，LF Amp600 W
Operating voltage: 220-240v 50/60Hz
Power connector: Powercon® input Powercon® Link

LN-RAY212A Dimensions:

Dimensions(W x H x D) 719 x 420x 262 mm
Weight: 28 kg
