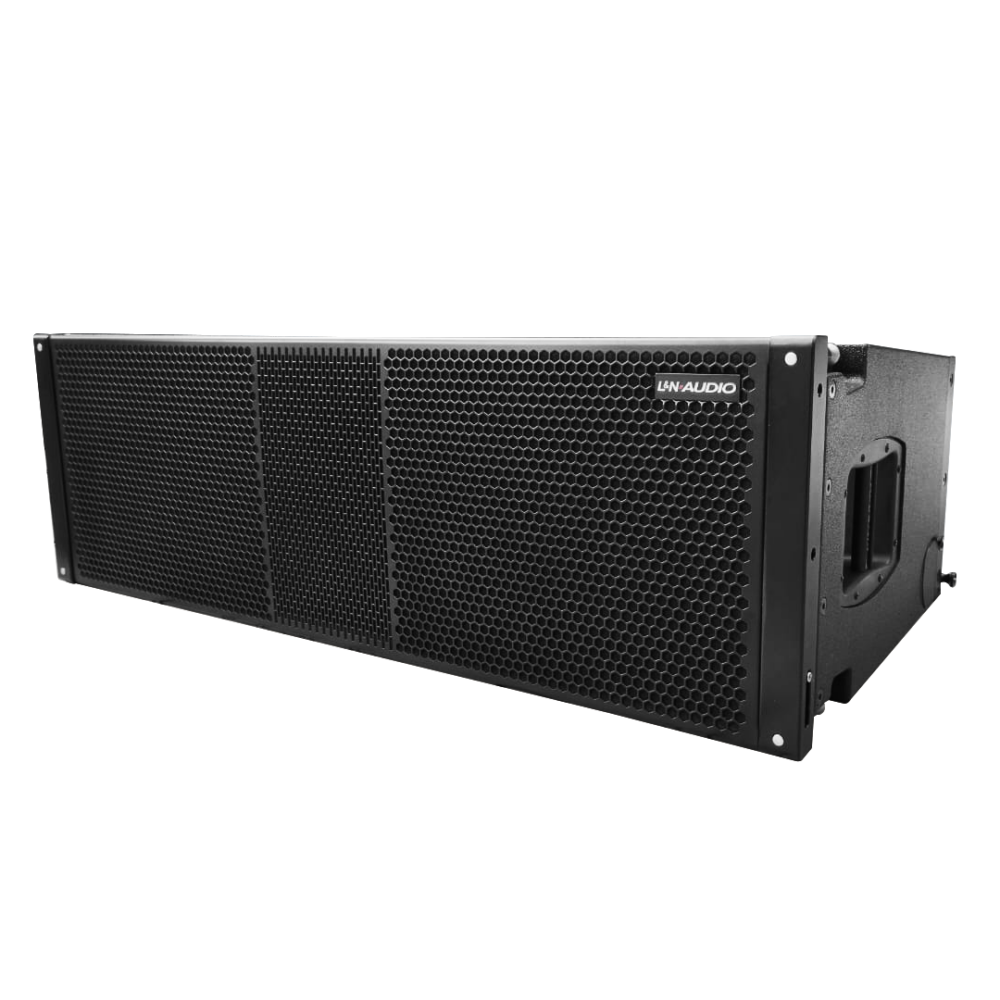

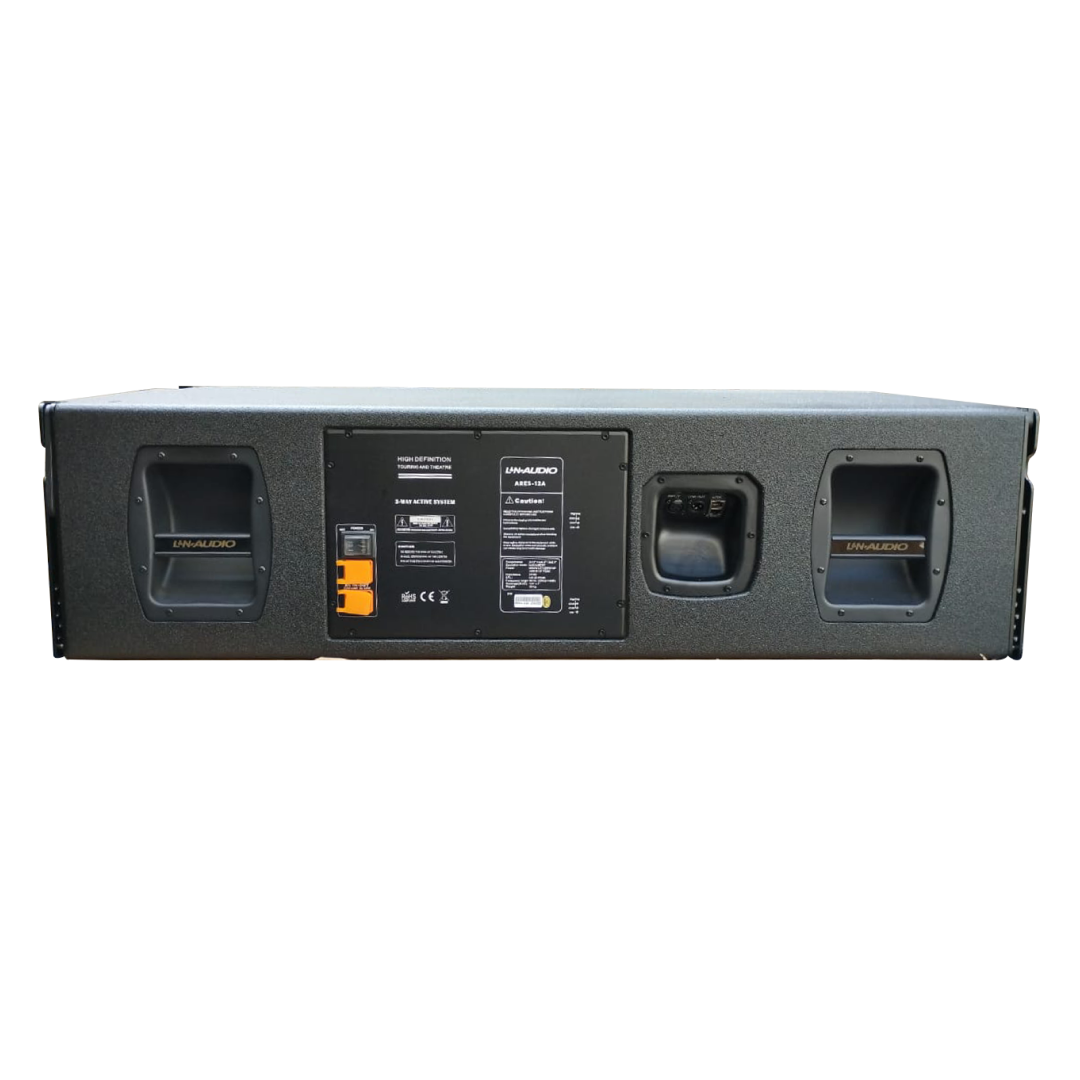

ARES-12A LINE ARRAY ACT. 3 VIAS 2X12″ LF (CELES-NEO) 4X6.5″ MF (NEO) 2X2.5″ HF (CELES-NEO) GERMAN DSP POWER PEAK LF:2800W MF1200W HF 400W SPL 145 DB (WATERP) «L&N-AUDIO»

ARES-12A LINE ARRAY ACT. 3 VIAS 2X12″ LF (CELES-NEO) 4X6.5″ MF (NEO) 2X2.5″ HF (CELES-NEO) GERMAN DSP POWER PEAK LF:2800W MF1200W HF 400W SPL 145 DB (WATERP) «L&N-AUDIO»

ESPECIFICACIONES:

Type： Active 4-way double 12 inch line array with DSP
Sensitivity： 110 dB
SPL： 145dB PEAK
Frequency range： [+/-3 dB] 50 Hz – 20KHz
Dispersion angle, averaged: [H x V] 120° x 7°, single unit
Power: LF 2 x 12”neo 2800W PEAK
MF 4 x 6.5”neo 1200W PEAK
HF 2 x 2.5”neo 400W PEA
Input sensitivity: Nominal 0 dBu
Signal input： 1 x XLR (Audio Input)
Signal output： 1 x XLR (Audio Link Out)
DSP interface： Rj45 input (EtherCon) for control using Pronet software

Amplier Technical Specications

Distoration： <0.05%
Amplifier type： Class-D
Output power： HF Amp 600W, MF Amp 1200W，LF Amp 2300W+2300W
Operating voltage: 220-240v 50/60Hz
Power connector: Powercon® input Powercon® Link

LN-RAY212A Dimensions:

Dimensions(W x H x D) 1148 x 367x 540 mm
Weight: 79kg
