LN-RAY210A LINE ARRAY ACTIVO 2X10″ MF + 2X1.75″ HF (CELESTION) C/ GERMAN DSP – POWER PEAK: MF:1200W/HF:300W SPL: MF:130 dB/HF:135dB (WATERPROOF) «L&N-AUDIO»

LN-RAY210A LINE ARRAY ACTIVO 2X10″ MF + 2X1.75″ HF (CELESTION) C/ GERMAN DSP – POWER PEAK: MF:1200W/HF:300W SPL: MF:130 dB/HF:135dB (WATERPROOF) «L&N-AUDIO»

ESPECIFICACIONES:

Type： Active 2-way doule 10 inch line array with DSP
Sensitivity： MF:106dB/HF:113dB
SPL： MF:130dB/HF:135dB PEAK
Frequency range： [+/-3 dB] LF:55 Hz -20KHz,
Dispersion angle, averaged: [H x V] 110° x 10°, single unit
Power: LF 2 x 10” 1200W PEAK HF 2x 1.75” 300W PEAK
Input sensitivity: Nominal 0 dBu

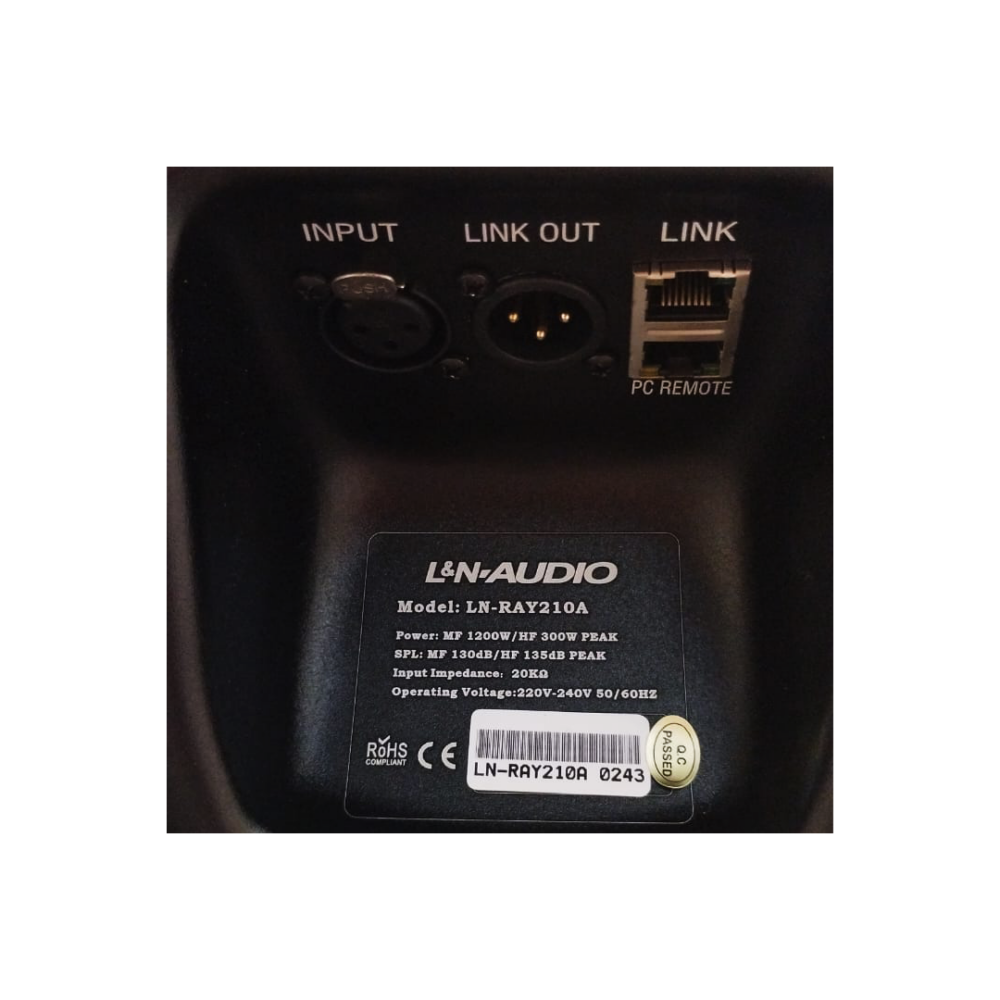

Signal input：1 x XLR (Audio Input)
Signal output：1 x XLR (Audio Link Out)
DSP interface： Rj45 input (EtherCon) for control using Pronet software

Amplier Technical Specifications

Distoration： <0.05%
Amplifier type： Class-D
Output power： 500W+1200 W/4Ω
Operating voltage: 220-240v 50/60Hz
Power connector: Powercon® input Powercon® Link

LN-RAY210A Dimensions:

Dimensions(W x H x D) 836 x 450x 299 mm
Weight: 35 kg
